Set Up Shade in Seconds: TJM’s 270 Freestanding Awning

There is nothing better than quick, reliable shade when it’s hot, and you're out on the tracks or parked for a coastal lunch stop. That’s where the TJM 270° Freestanding Awning takes the lead, offering instant coverage without the setup hassle.

This awning delivers 12.8m² of pole-free, shelter. Built for true 4x4 adventurers, it combines smart design with rugged durability, because outdoor gear should make life easier, not harder.

Why It’s Built for the Outdoors

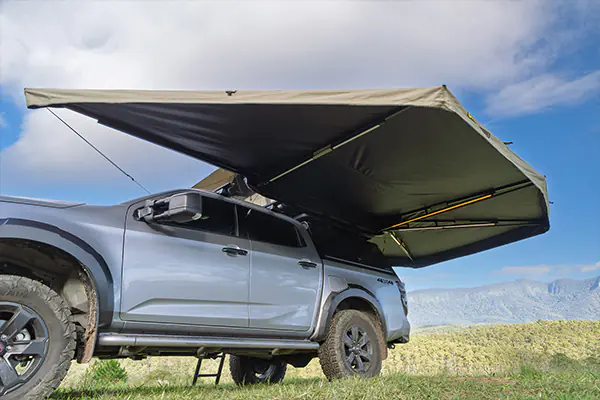

At its core, the TJM 270° Awning features an A-truss arm system with six heavy-duty aluminium arms that extend to wrap around the rear and side of your vehicle. It’s freestanding, so you can set it up without support poles in good weather. When weather turns up the wind and you need extra stability? You’ve got four integrated poles, two additional loose poles, ratchet ropes, and multiple tie-downs to keep everything grounded when the wind picks up.

The 280gsm ripstop canvas fabric blocks the harshest sun with UPF 50+ protection and a 2500mm PU rating for water resistance. Plus, the black PU coating underneath cuts out sun glare, keeping your shade cool and comfortable.

Setup Instructions: How to Get Shade in Minutes

Before You Begin
Make sure your vehicle is parked, it is simple to setup the awning by yourself or with family or friend.

STEP 1: Unpack and Prepare

Remove the 600D PVC transit cover from the awning.
Unfasten any Velcro straps or buckles securing the awning arms.

STEP 2: Deploy the Awning

Begin unfolding the awning clockwise (or anticlockwise, depending on your vehicle mount).

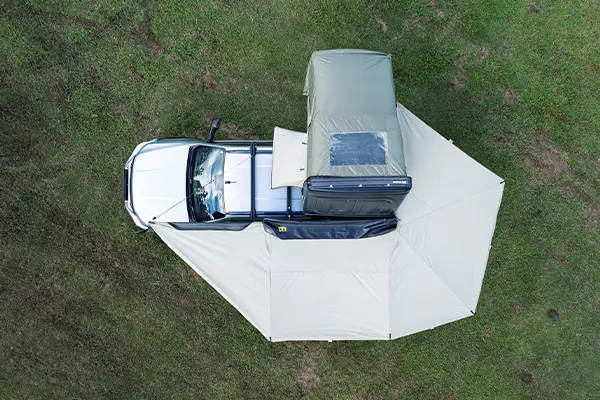

Extend each of the six A-truss arms out to form a 270-degree arc around your vehicle.
If available, clip or secure arms to mounting points for additional tension.

STEP 3: Secure It in Place

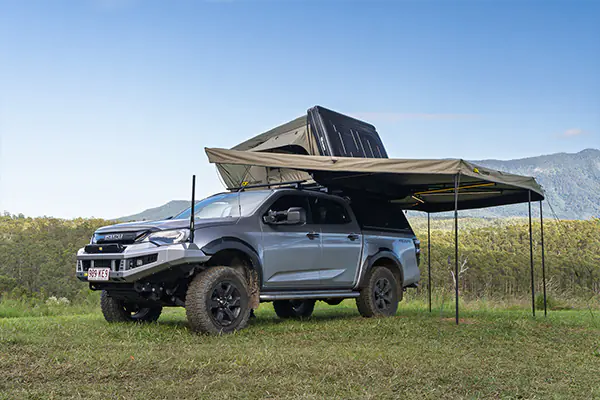

Lower the integrated support poles and adjust them to suit the ground height.
For added stability, use the two loose poles at key load points.
Peg out the ratchet ropes at a 45° angle for tension.
Use the tie-downs and pegs at every corner to anchor securely.

Tip: Use the water runoff points to angle canvas correctly and prevent pooling during wet weather.

STEP 4: Light It Up

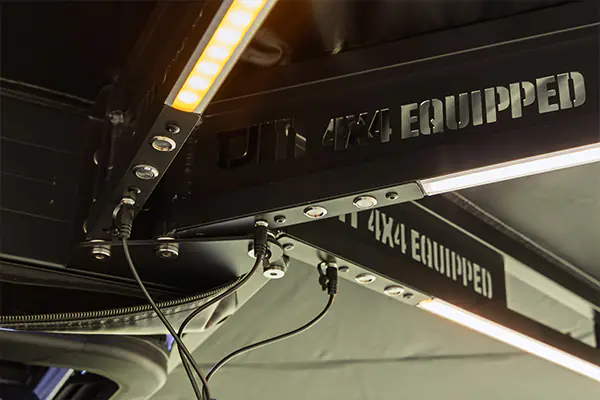

Once set up, you can power up the USB-powered LED light strips, which offer white, yellow, or combo lighting with 10 brightness levels to suit your camp vibe. From setting up dinner to late-night storytelling, it’s built to keep the adventure going after dark.

Add Walls, Expand Your Space

Need more privacy or wind protection? Optional wall kits [link here to wall kit] are available for both the rear and side panels—just zip them on when needed to turn your setup into a full camp base.

Pack Down Is Just as Simple

To pack up, reverse your setup:

Detach guy ropes and poles.
Fold in each arm carefully.
Secure with straps and replace the transit cover.
Everything stores neatly and securely, ready for your next trip.

Built to Last, Backed by Confidence

The TJM 270° Freestanding Awning is covered by a 2-year warranty, so you can explore with peace of mind. With smart engineering, rugged materials, and fast setup, this awning is the go-to choice for travellers who value both form and function.

Take The Lead—Wherever You Pull Up

When you're out chasing horizons, shade and shelter should never slow you down. The TJM 270° Awning keeps you protected and comfortable—so you can focus on the adventure, not the setup.
