TJM ULTIMA WIRING HARNESS – 8” PAIR LIGHT BAR
SKU
032TJMLBWH8
$209
RRP
All your questions answered

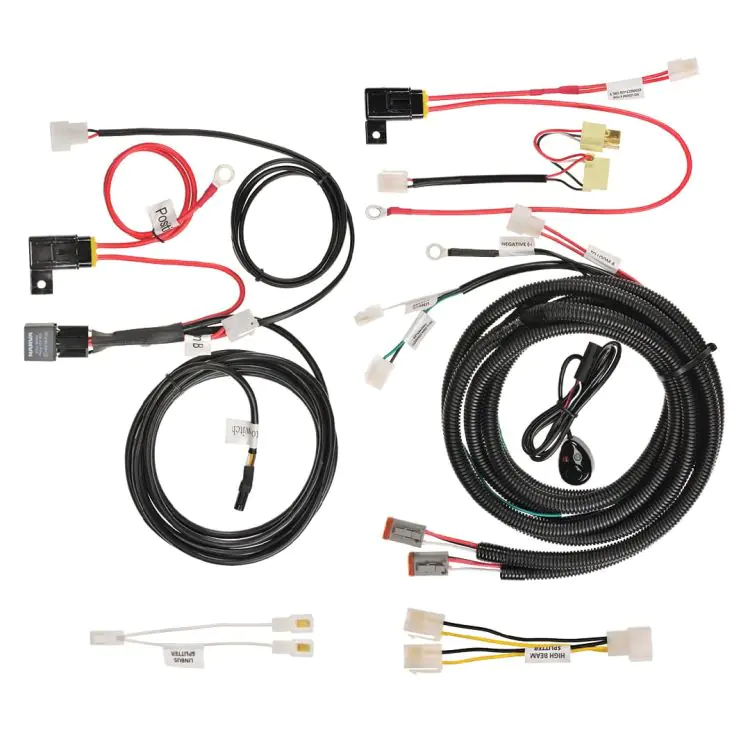

TJM's new Light Wiring Harness has been built from the ground up specifically suited to our TJM Ultima light bar range. This light bar wiring harness is fitted with dual 4 pin DT Connectors making installation of 8" light bar pair quick and easy eliminating splicing, clips or scotch locks. Featuring fire and abrasion resistant sheathing and conduit, a waterproof 40Amp relay and fuse holder plus H4 high beam adapter with a plug and play function with the TJM Light range. This harness kit will work with and without Ultima Connect+ Control Switch set up.
| Contents: | 1x Main Wiring Harness with two 4PIN DT terminated 1x 12v DC 40A Waterproof Relay with Fuse holder in-line 1x Illuminated Switch Fuse holder for Connect+ use 3x 40A ATS Fuses 1x H4 Highbeam adapter 1x Highbeam adapter splitter for multiple harnesses 1x Highbeam adapter ext. for Connect+ use 1x Linbus wire splitter for Connect+ use |
| Length: | 1x 2700mm from one 4pin DT connector to Ground terminal 1x 3200mm from second 4pin DT connector to Ground terminal 1x 700mm Positive fused wire 1x 1200mm High beam adapter extension 1x 1100mm Position light/Ignition wire |
| Relay Rating: | 40A @ 12V DC |
| Fuse: | 40A |
| Installation: | Use Loom with Relay and in-line Fuse for traditional lighting install or Positive in-line fuse loom for Connect+ use |
| Connectivity: | Compatible with Connect+ |
| Weight | 1.100000 kg |
| Length | 80 mm |
| Width | 100 mm |
| Height | 170 mm |
