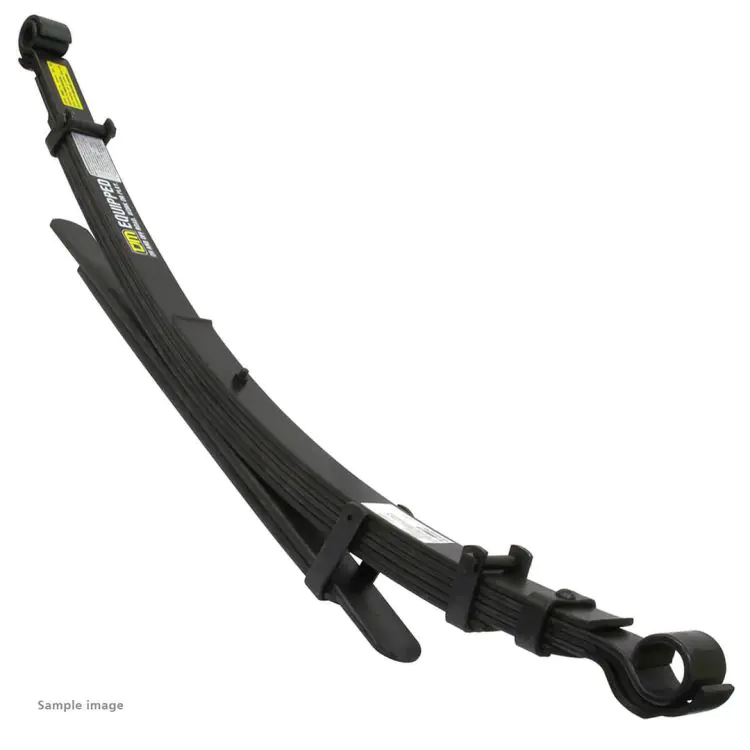

XGS LEAF SPRING REAR RAISED 300KG (1 ONLY)

SKU
653RRLE69W
$515 RRP, Excludes Fitment and Supplementary kits based on model
How to get it
Fitted in store
Fitted in a store of your choice, by one of our 4x4 experts.
Order now, and only pay a deposit when our team contact you to book your in-store fitment date.
icon__chat-avatar
Need Help?
Question? We're here to help. Call or chat with our 4x4 specialist team.

All your questions answered

XGS Leaf Springs are the perfect choice for any 4x4 owner looking to upgrade their leaf springs as part of a complete suspension overhaul. These springs are designed and engineered in Australia using high-stress spring steel, ensuring that they are built to withstand even the toughest conditions. They provide a significant improvement in load carrying ability, towing safety, ride comfort, and directional stability, making them perfect for off-road use. The increased flexibility of these leaf springs leads to better traction and increased wheel travel, resulting in improved ground clearance. Plus, with XGS's cutting-edge design and manufacturing techniques, you can trust that these springs will provide a consistently smooth ride. Whether you're a seasoned off-road adventurer or just looking to enhance your vehicle's performance, XGS Leaf Springs have got you covered.
Material:High-stress spring steel
Lift/LBA:50mm±5mm @ 300kg
No. of Leaves:5+2
Free Camber:230mm +/-5mm
Features:Graphite coated to reduce friction
Bolt clips for better rebound control
Zinc coated bush inserts to ensure optimum bush life
Greaseable friction pads to improve service life and ridge quality
Drawn tapered and diamond cut leaves to distribute load over a larger surface area, reduce load stress and protect against breakage
  • TOYOTA LANDCRUISER COMMERCIAL VDJ76R 03/07-08/22 W/mate 4Dr Wagon
  • TOYOTA LANDCRUISER COMMERCIAL VDJ76R 03/07-08/22 GXL 4Dr Wagon
  • TOYOTA LANDCRUISER COMMERCIAL VDJ76R 09/22-11/23 W/mate 4Dr Wagon
  • TOYOTA LANDCRUISER COMMERCIAL VDJ76R 09/22-11/23 GXL 4Dr Wagon
  • TOYOTA LANDCRUISER COMMERCIAL GDJ76R 12/23-On W/mate 4Dr Wagon 2.8L
  • TOYOTA LANDCRUISER COMMERCIAL GDJ76R 12/23-On GXL 4Dr Wagon 2.8L
  • TOYOTA LANDCRUISER COMMERCIAL VDJ76R 12/23-On GXL 4Dr Wagon 4.5L
  • TOYOTA LANDCRUISER COMMERCIAL VDJ76R 12/23-On W/mate 4Dr Wagon 4.5L
Write Your Own Review
You're reviewing:XGS LEAF SPRING REAR RAISED 300KG (1 ONLY)
Your Rating

Delivery costs and timeframes are subject to your location and the product(s) in your order. During the checkout, please enter your delivery address to get the latest costs and timeframes available for your order.

To view our returns policy, please click here.

Weight 45.000000 kg
Length 1370 mm
Width 400 mm
Height 70 mm
  • Approximate Fitting Time: 1hours
  • Suggested Fitting Cost: $145
  • Bush Kits, Shackles, Pins & U-bolts sold separately
Suggested time for fitment and fitment costs are an approximate figure only, actual labour costs may vary. See in-store for details.
