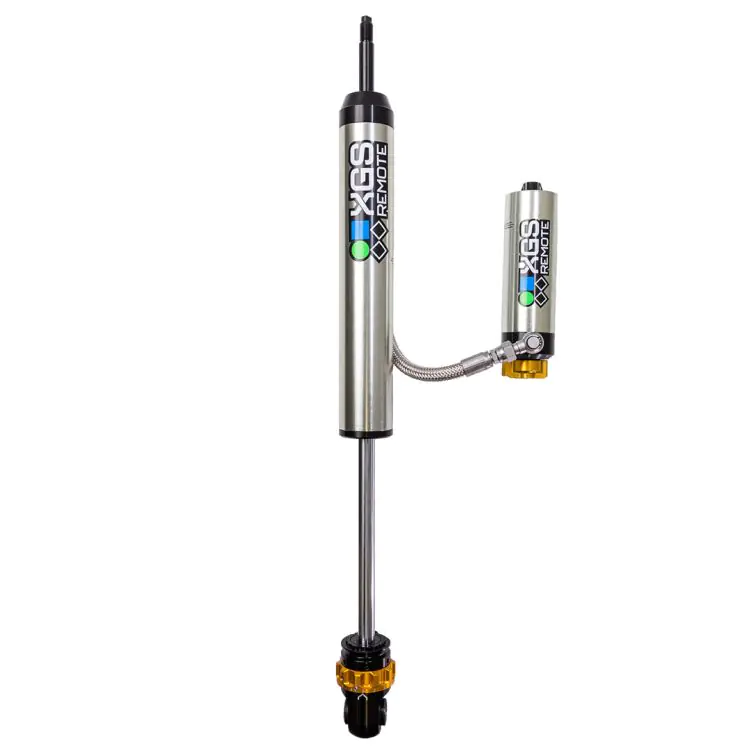

XGS REMOTE SHOCK ASSEMBLY REAR - LHS

SKU
650RRA282DL
$499 Regular Price $649
Save $150
Please note: This price excludes freight, product fitting and other products/consumables. Your selected store will provide a fitted price showing all items and costs.
How to get it
Fitted in store
Fitted in a store of your choice, by one of our 4x4 experts.
Order now, and only pay a deposit when our team contact you to book your in-store fitment date.
icon__chat-avatar
Need Help?
Question? We're here to help. Call or chat with our 4x4 specialist team.

All your questions answered

XGS Remote has been designed to provide the ultimate off-road experience for both weekend adventurers and high performance off-road users. The unique 8 stage, separate compression and rebound adjustability provides a fully customised ride to suit any load application. The patented inbuilt hydraulic bump-stop provides the perfect solution for vehicles that experience shocks bottoming at high speeds or when heavily loaded. As the shock absorber reaches maximum compression, the internal bump stop progressively increases damping resistance for maximum impact control. As a result, the vehicle and occupants are protected from high stress loads. The innovative monotube design consists of a single wall construction which ensures direct heat dissipation. This coil over assembly includes the coil spring and has an adjustable spring seat for fine tuning of ride height.
Material:Monotube 52mm Smooth bore seamless tube body with adjustable coil-over spring seat.
Size:52mm Big bore piston with 20mm hard chromed alloy steel piston rod with remote reservoir for increased oil capacity.
Suits:Rear Left Hand Side.
Lift:40-50mm Lift.
  • TOYOTA LANDCRUISER WAGON 300 SERIES 11/21-On GX
  • TOYOTA LANDCRUISER WAGON 300 SERIES 11/21-On GXL
  • TOYOTA LANDCRUISER WAGON 300 SERIES 11/21-On VX
  • TOYOTA LANDCRUISER WAGON 300 SERIES 11/21-On Sahara
  • TOYOTA PRADO 250 SERIES 11/24-On GX
  • TOYOTA PRADO 250 SERIES 11/24-On VX
  • TOYOTA PRADO 250 SERIES 11/24-On Altitude
  • TOYOTA PRADO 250 SERIES 11/24-On Kakadu
  • TOYOTA PRADO 250 SERIES 11/24-On GXL
Write Your Own Review
You're reviewing:XGS REMOTE SHOCK ASSEMBLY REAR - LHS
Your Rating

Delivery costs and timeframes are subject to your location and the product(s) in your order. During the checkout, please enter your delivery address to get the latest costs and timeframes available for your order.

To view our returns policy, please click here.

Weight 6.880000 kg
Length 220 mm
Width 740 mm
Height 130 mm
  • Approximate Fitting Time: 1hour
  • Requires Reservoir mount kit 658RMKITR82D for LC300 or 658RMKITR88P for Prado 250
  • Fitting Instructions
Suggested time for fitment and fitment costs are an approximate figure only, actual labour costs may vary. See in-store for details.
Product may vary from image shown.
