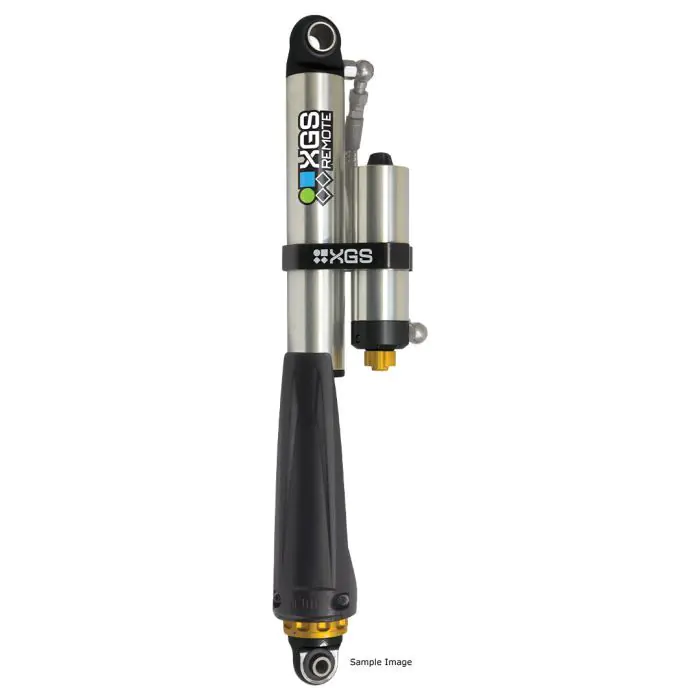

XGS REMOTE SHOCK ASSEMBLY REAR - RHS

SKU
650RRA287DR
$536 Regular Price $670
Save $134
Excludes Fitment and Supplementary kits based on model
How to get it
Fitted in store
Fitted in a store of your choice, by one of our 4x4 experts.
Order now, and only pay a deposit when our team contact you to book your in-store fitment date.
icon__chat-avatar
Need Help?
Question? We're here to help. Call or chat with our 4x4 specialist team.

All your questions answered

The brand-new bi-directional adjustable remote reservoir Shock Absorber from XGS has arrived. XGS Remote has been designed to provide the ultimate off-road experience for both weekend adventurers and high performance off-road users. The unique 8 stage, separate compression and rebound adjustability provides a fully customised ride to suit any load application. The patented inbuilt hydraulic bump-stop provides the perfect solution for vehicles that experience shocks bottoming at high speeds or when heavily loaded. As the shock absorber reaches maximum compression, the internal bump stop progressively increases damping resistance for maximum impact control. As a result, the vehicle and occupants are protected from high stress loads. The innovative monotube design consists of a single wall construction which ensures direct heat dissipation. This coil over assembly includes the coil spring and has an adjustable spring seat for fine tuning of ride height.
Shock Design:Nitrogen Charged, mono tube with remote reservoir
Construction:3mm tube wall thickness
Piston Bore:52mm
Piston Rod:20mm hard chrome plated
Lift:0-45mm
Suits:Rear right
Features:8 stage adjustment of compression & rebound
Position sensitive damping
High durability rubber bushes
In-built hydraulic bump stop
Steel braided high temp oil hose
High impact polypropylene stone guard
High grade damping oil
Automatic multi-stage velocity controlled valving
  • TOYOTA HILUX 8th GEN 09/15-07/18 Extra C/Chas & Pick Up
  • TOYOTA HILUX 8th GEN 09/15-07/18 4Dr C/Chas & Pick Up
  • TOYOTA HILUX 8th GEN 08/18-07/20 Extra C/Chas & Pick Up
  • TOYOTA HILUX 8th GEN 08/18-07/20 4Dr C/Chas & Pick Up
  • TOYOTA HILUX 8th GEN 09/15-On W/mate-SR 2Dr C/Chassis
  • TOYOTA HILUX 8th GEN 08/20-03/24 Extra C/Chas & Pick Up
  • TOYOTA HILUX 8th GEN 08/20-03/24 4Dr C/Chas & Pick Up
  • TOYOTA HILUX 8th GEN 08/20-10/22 4Dr Pick Up Rogue/Rocco
  • TOYOTA HILUX 8th GEN 04/24-On Extra C/Chas & Pick Up
  • TOYOTA HILUX 8th GEN 04/24-On 4Dr C/Chas & Pick Up
  • TOYOTA HILUX 8th GEN 04/24-On 4Dr C/Chas & Pick Up 48V
Write Your Own Review
You're reviewing:XGS REMOTE SHOCK ASSEMBLY REAR - RHS
Your Rating

Delivery costs and timeframes are subject to your location and the product(s) in your order. During the checkout, please enter your delivery address to get the latest costs and timeframes available for your order.

To view our returns policy, please click here.

Weight 6.600000 kg
Length 770 mm
Width 220 mm
Height 130 mm
  • Approximate Fitting Time: 1hours
  • Suggested Fitting Cost: $145
  • Requires Reservoir Mounting Kit (658RMKITP01). Kit contains mount for one shock.
  • Fitting Instructions
Suggested time for fitment and fitment costs are an approximate figure only, actual labour costs may vary. See in-store for details.
Product may vary from image shown.
