TJM's new Light Wiring Harness has been built from the ground up specifically suited to our TJM Ultima light bar range. This light bar wiring harness is fitted with a 6 pin DT Connector making installation of 24" light bar quick and easy eliminating splicing, clips or scotch locks. Featuring fire and abrasion resistant sheathing and conduit, a waterproof 40Amp relay and fuse holder plus H4 high beam adapter with a plug and play function with the TJM Light range. This harness kit will work with and without Ultima Connect+ Control Switch set up.

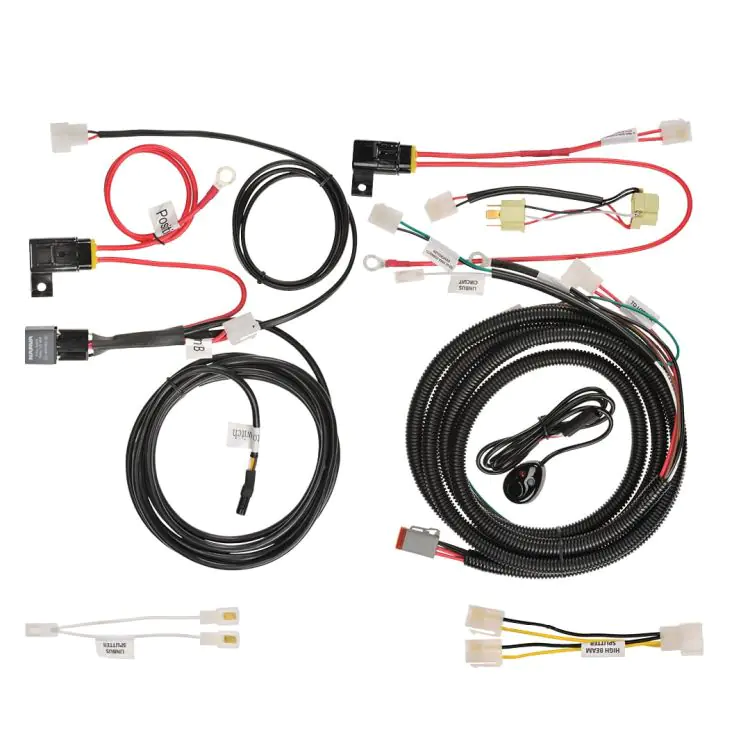

| Contents: | 1 x Main Wiring Harness with 6PIN DT terminated 1 x 12v DC 40A Waterproof Relay with Fuse holder in line 1 x Illuminated Switch 1 x Fuse holder for Connect+ use 3 x 40A ATS Fuses 1 x H4 Highbeam adapter 1 x Highbeam adapter splitter for multiple harnesses 1 x Highbeam adapter extension for Connect+ use 1 x Linbus wire splitter for Connect+ use |
| Length: | 1 x 2700mm DT connector to Ground terminal 1 x 700mm Positive fused wire 1 x 1200mm High beam adapter extension 1 x 1100mm Position light/Ignition wire |
| Relay Rating: | 40A @ 12V DC |
| Fuse: | 40A |
| Installation: | Use Loom with Relay and in-line Fuse for traditional lighting install or Positive in-line fuse loom for Connect+ use |
| Connectivity: | Compatible with Connect+ |
Write Your Own Review
Delivery costs and timeframes are subject to your location and the product(s) in your order. During the checkout, please enter your delivery address to get the latest costs and timeframes available for your order.
To view our returns policy, please click here.
| Weight | 1.100000 kg |
| Length | 80 mm |
| Width | 100 mm |
| Height | 170 mm |
