XGS U-BOLT W/FLANGE NUTS TYPE B OD14 W62 L200

SKU
775T001
Rating:
% of 100
Add to Wish List Add to Wish List
$25 RRP
How to get it
In-Store Pickup
Pick up from your nearest TJM store.
Note: Our team will contact you after ordering to arrange payment and pickup date.

All your questions answered

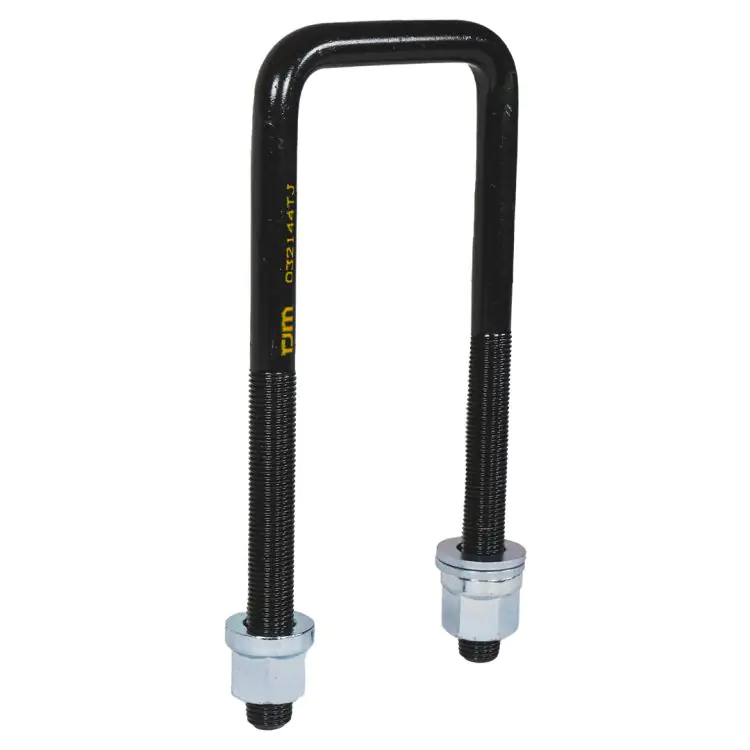

When new springs are installed on your vehicle, reusing the existing U-bolts could create a potentially dangerous situation. This XGS U-bolt is 14 x 62 x 180mm with a square top (B) and should be used when upgrading to TJM leaf springs. If the original U-bolt is reused the pitch of the thread may be stretched, which can cause the U-bolt nut to loosen, thereby causing the spring pack to become loose. We highly recommend replacing U-bolts when new springs are installed. TJM XGS U-bolts are matched in length to our XGS leaf spring range to accommodate the increased spring stack height.
Size:Square Top - Material OD 14mm - Inside Width 62mm - Inside Length 200mm
  • ISUZU D-MAX RG 08/20-04/24 2Dr Cab Chassis Hi Rider
  • ISUZU D-MAX RG 08/20-04/24 Space C/Chas & Pick Up
  • ISUZU D-MAX RG 08/20-04/24 4Dr C/Chas & Pick Up
  • ISUZU D-MAX RG 05/24-On LS-U Space Cab Pick Up
  • ISUZU D-MAX RG 05/24-On LS-M 4Dr Cab Chassis & Pick Up
  • ISUZU D-MAX RG 05/24-On LS-U 4Dr Cab Chassis & Pick Up
  • ISUZU D-MAX RG 05/24-On SX 2Dr Cab Chassis
  • ISUZU D-MAX RG 05/24-On SX Space Cab Cab Chassis
  • ISUZU D-MAX RG 05/24-On SX 4Dr Cab Chassis & Pick Up
  • ISUZU D-MAX RG 05/24-On LS-U+ 4Dr Pick Up
  • ISUZU D-MAX RG 05/24-On X-Rider 4Dr Pick Up
  • ISUZU D-MAX RG 05/24-On X-Terrain 4Dr Pick Up
  • MAZDA BT-50 TF 08/20-On 2Dr Cab Chassis
  • MAZDA BT-50 TF 08/20-On Freestyle Cab Chassis
  • MAZDA BT-50 TF 08/20-On 4dr Cab Chassis & Pick up
  • NISSAN NAVARA D40 11/05-01/10 Spanish Built
  • NISSAN NAVARA D40 02/10-05/15 Spanish Built
  • NISSAN NAVARA D40 01/08-05/15 Thai Built
  • NISSAN NAVARA D40 ST, ST-X V6 Diesel 03/11-12/14
  • TOYOTA HILUX 4th GEN 11/83-09/88
  • TOYOTA HILUX 5th GEN 10/88-10/97 - Independent Front
  • TOYOTA HILUX 5th GEN 10/88-10/97 - Leaf Front Suspension
  • TOYOTA HILUX 6th GEN 11/01-03/05
  • TOYOTA HILUX 7th GEN 04/05-07/11
  • TOYOTA HILUX 7th GEN 08/11-08/15
  • TOYOTA HILUX 6th GEN 11/97-10/01
  • TOYOTA 4RUNNER N60 08/85-09/89
  • FORD RANGER PY 06/22-On XL 2Dr Cab Chas 2.0L SiT
  • FORD RANGER PY 06/22-On XL Super C/C & P/Up 2.0L BiT
  • FORD RANGER PY 06/22-On XLS 4Dr P/Up 2.0L BiT
  • FORD RANGER PY 06/22-On XL 4Dr C/C & P/Up 2.0L BiT
  • FORD RANGER PY 06/22-On XLT Super Cab P/Up 2.0L BiT
  • FORD RANGER PY 06/22-On XLT 4Dr P/Up 2.0L BiT
  • FORD RANGER PY 06/22-On XLT 4Dr C/C & P/Up 3.0L V6
  • FORD RANGER PY 06/22-On Sport 4Dr P/Up 2.0L BiT
  • FORD RANGER PY 06/22-On Sport 4Dr P/Up 3.0L V6
  • FORD RANGER PY 06/22-On WILDTRAK 4Dr P/Up 2.0 BiT
  • FORD RANGER PY 06/22-On WILDTRAK 4Dr P/Up 3.0 V6
  • VOLKSWAGEN AMAROK 05/23 -On Core 4Dr P/Up 2.0L TDI405
  • VOLKSWAGEN AMAROK 05/23 -On Life 4Dr P/Up 2.0L TDI500
  • VOLKSWAGEN AMAROK 05/23 -On Style 4Dr P/Up 2.0L TDI500
  • VOLKSWAGEN AMAROK 05/23 -On Style 4Dr P/Up 3.0L V6 TDI600
  • VOLKSWAGEN AMAROK 05/23 -On Pan Americana 4Dr P/Up 3.0L V6 TDI600
  • VOLKSWAGEN AMAROK 05/23 -On Aventura 4Dr P/Up 2.3L Petrol TSI452
  • VOLKSWAGEN AMAROK 05/23 -On Aventura 4Dr P/Up 3.0L V6 TDI600
Write Your Own Review
You're reviewing:XGS U-BOLT W/FLANGE NUTS TYPE B OD14 W62 L200
Your Rating

Delivery costs and timeframes are subject to your location and the product(s) in your order. During the checkout, please enter your delivery address to get the latest costs and timeframes available for your order.

To view our returns policy, please click here.

Weight 0.470000 kg
Length 30 mm
Width 100 mm
Height 200 mm
Product may vary from image shown.
